Our Success Stories

We have been trusted for several years working on projects to solve our clients’ problems in various industries, such as power plants, marine, palm oil, pulp, paper, cement, steel, oil, gas, and many more. The projects covered the field of B30 biodiesel purification, oil purification, automatic lubrication, flushing, tank cleaning, HPU, piping, rental, and accumulators. Here are some of the projects we have worked on for our clients.

HPU

Hydraulic Power Unit (HPU) Chain & Tension

Image Description
Image Description
Image Description

Cement Plants

Initial Client Problem

Our client is a cement manufacturer in South Sulawesi, Indonesia. They have a chain and tension system for STRE on their raw mill 4 equipped with a manual lubrication system. They plan to upgrade the system using a Hydraulic Power Unit (HPU). They requested a new tensioning power pack design to support the existing cylinder actuator with a maximum tension capacity of 350 kN. In addition, we were asked to design a power pack that could fit in a very limited space.

Our Solution

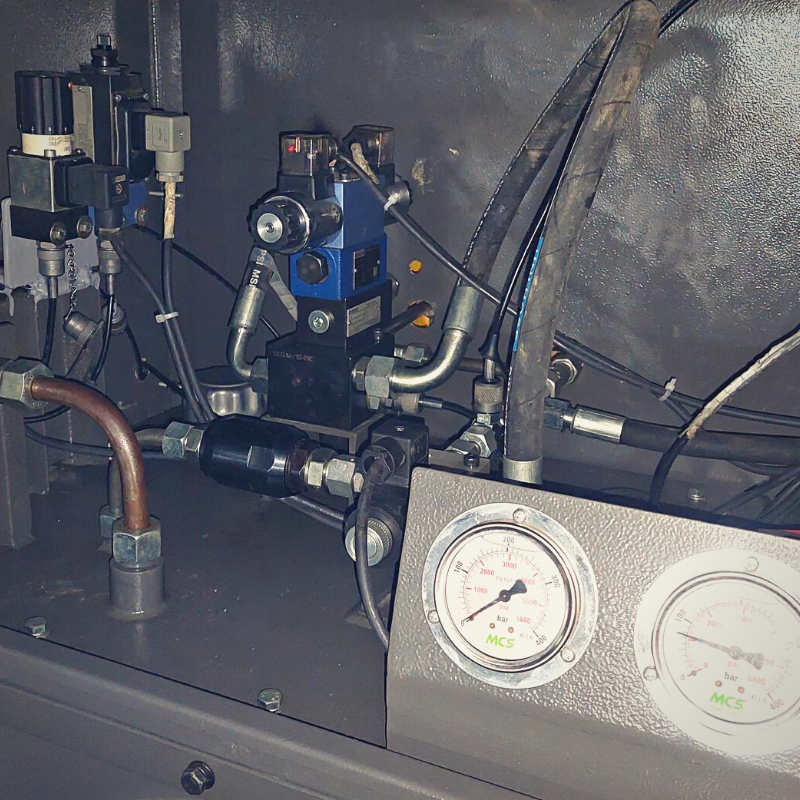

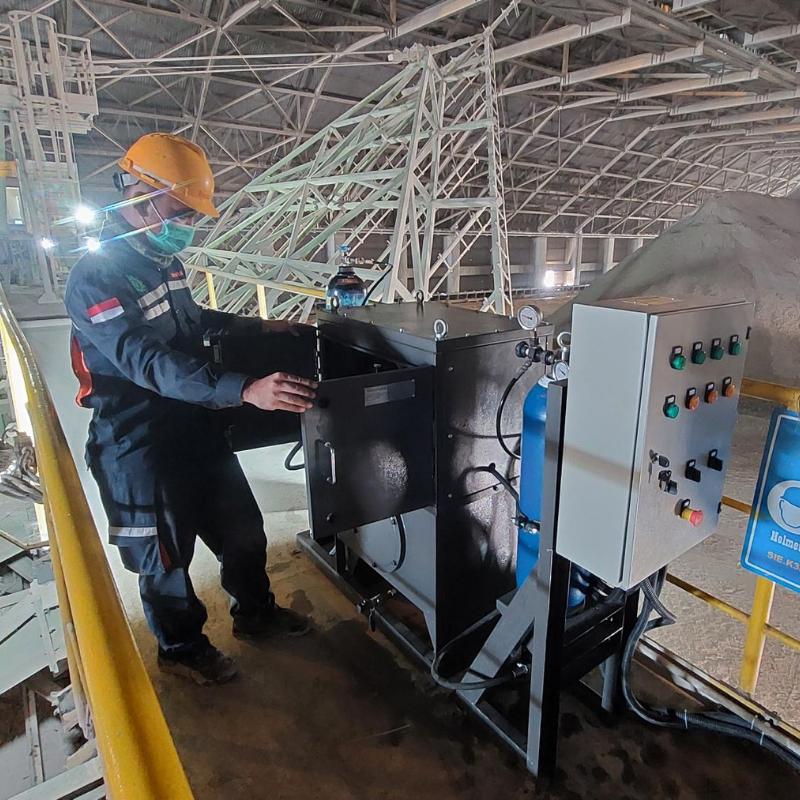

We performed hydraulic design and calculations to ensure our system met our client's needs. We applied a critical engineering approach to address the space constraints for this HPU. Then, we provided a Hydraulic Power Unit (HPU) with high-quality components from Bosch Rexroth to increase the durability of the HPU. In addition, we provided a complete service from assembly, installation, testing, and commissioning. Our HPU has a capacity of 6 L/min with a pressure of 100 bar, capable of operating continuously for 24 hours using ISO VG 68 with a power of 3kW.
